Browse Helix Models and Effects
Helix currently supports 72 amplifier models, 194 effects, 37 speaker cab models, and 16 microphones. On top of all that you also have the ability to load Impulse Responses (IRs) that you can grab from free or paid sources. Go have fun.

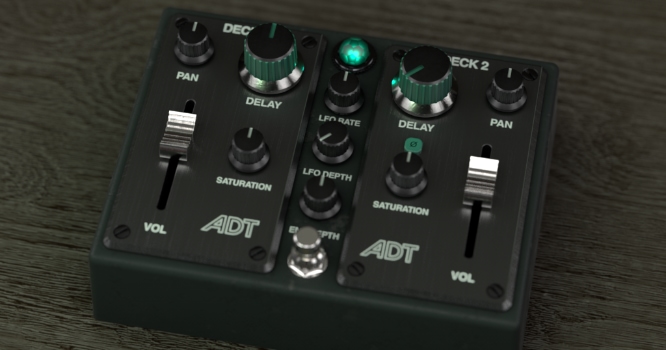

ADT (Line 6 Original)
ADT Effect panned hard left/right. Used a Charvel Deluxe 475 guitar thru the Helix Deluxe Reverb model for the sound demo.
Line 6 Original double-tracking tape emulation.
- Delay 1, Delay 2—Sets the delay time for each deck. Delay 1 can go up to 0.02 sec and Delay 2 can go up to 0.20 sec
- WowFlutr1, WowFlutr2—Determines how much warbly tape sound is heard for each deck
- Saturate1, Saturate2— Adds analog tape saturation and at high enough settings, distortion. At lower settings, it's great for simply warming up a tone
- Deck 1 Vol, Deck 2 Vol—Sets the level of each deck independently
- Deck 1 Pan, Deck 2 Pan—Pans each deck left and right
- Deck 2 Pol—Flips the polarity of deck 2
- Level—Sets the overall level of the block
- Mod Rate—Controls the rate or speed of modulation
- ModDepth—Controls the depth or amount of modulation
- Envelope—When on, picking harder can impart very slight pitch fluctuations by tweaking Deck 2's delay. Subtle, but fun
- EnvThresh—Sets the level above which engages the envelope
- TapeSpeed—Changes both the rate of the modulation applied by the WowFluttr control and the filtering response of the analog tape emulation
- Texture— Adjusts the amount of the NAB tape EQ in the simulated tape path. When Saturation is set to 0.0, the texture is invisible. When Saturation is turned up, the texture will affect the tightness (or looseness) of the distortion
- Low Cut—Applies a low cut (high pass) filter to the decks, letting you remove the effected signal below a certain frequency
- High Cut—Applies a high cut (low pass) filter to the decks, letting you remove the effected signal above a certain frequency
- Trails—When set to "Off," delay repeats are instantly muted when the block is bypassed. When set to "On," delay repeats continue to decay naturally when the block is bypassed or a different snapshot is selected
Description source: Line 6
Image source: Line 6
Spaced Delay
A nice stereo delay clean tone using the Princeton amp and cab. Two stereo delays are run in parallel for cool ambience.
- 👇 Downloads: 351
- 🤘 Upvotes: 2
- Member: Jorge
- Performance Type:
Direct (Recording, Headphone, PA)
Patch | Performance Type |
Description | Member | 👇 Downloads | 🤘 Upvotes |
---|---|---|---|---|---|
Spaced Delay | Direct (Recording, Headphone, PA) | A nice stereo delay clean tone using the Princeton amp and cab. Two stereo delays are run in parallel for cool ambience. | Jorge | 351 | 2 |
