Browse Helix Models and Effects

Helix currently supports 72 amplifier models, 194 effects, 37 speaker cab models, and 16 microphones. On top of all that you also have the ability to load Impulse Responses (IRs) that you can grab from free or paid sources. Go have fun.

Double Take (Line 6® Original)

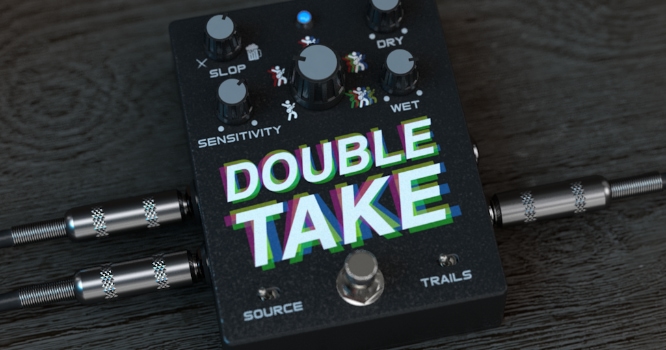

Double Take, the Helix model of a Line 6® Original

This effect is best explained by Sam, one of Line 6's sound designers, as posted to the The Gear Page:

The Double Take is a new double tracking effect made specifically for the Helix. Having spent a lot of time listening to a plethora of double tracked instruments, we found that the way a part is performed has a huge effect on how the layered tracks would feel. With this in mind, we wanted to make a new double track effect that responds dynamically with the way the player performs, adding the real-world dimension and depth you would get from having multiple recordings of a single part. This led to a whole new design from the ground up, with a lot of tuning available for the amount and types of variation between the doubled voices. This makes for the ability to have an incredibly realistic sounding and feeling double tracker with the ability to shape the feel at your finger(and foot-)tips.

Doubles
The main "Doubles" knob controls the number of double tracks into the mix from one to four generated voices, and in the stereo versions, the dry signal is assigned to a specified pan location. (Dry signal is underlined)
1 = Left and Right
2 = Left, Center, Right
3 = Left, Left, Right, Right
4 = Left, Left, Center, Right, Right
Note: as each extra voice is added, there is a post-effect level compensation such that the overall dB of the remains about uniform. You can make up this change with the two output knobs if you want the same level hitting whatever you send the doubled tracks in to. Also since these are hard pans, you an also use the "stereo width" block to control how wide this effect is in the stereo field.

Slop
The Slop knob controls the amount of the slight variations in timing and pitch you would hear from each of the doubled voices. The variations are what we like to call "Defined Randomness" as this amount and timing is directly coupled with the dynamics of the original part. This knob controls the heart of this effect, as it will define the voices from tight and refined at low settings and all the way to(too?) wild and dynamic at max. With this knob you can set such that a softer touch there isn't much change to the original performance, but the harder you dig in, the more the doubled voices' strings stretch, slap around, and become widely de-correlated.

Sensitivity
This knob controls the sensitivity of the slop feature. The lower this parameter is set there will be less dynamic behavior from the voices. This can be viewed more or less like a threshold or input gain of a compressor, but specifically for the slop's detection algorithm.

Source (Stereo only)
The Double take can have a true stereo path. This parameter determines how the input signal is processed by the effect.
Mono: Input will be summed to mono then processed by the Double Take
True Stereo: Each side will be sent as a true stereo path, and each extra voice will be sent to the side of the source pan.
Left Only: Only the left input will be sent into the Double Take
Right Only: Only the right input will be sent into the Double Take

Dry and Wet Levels
Instead of a This controls the level of the original dry signal as it passes through the effect. Note the Dry Level Location above.
Note: In "True Stereo" mode, the dry signal for the right will only be used for the doubles and will not pass through the effect. In "Right Only" mode, the Right channel will be sent to the left or center according to the Doubles parameter.

Personally, I like to put it either after my amp and cab if I'm using the stereo version, or in mono right in front of the rig just after my guitar... but I'm sure all you lovelies will find some more amazing uses! Hope you guys found this informative and it helps you have fun. :) sorry for the long post :X thank you.

Description source: thegearpage.net


Patches including this Modulation:

Patch Device Performance
Type
Description Member Downloads Upvotes
Slayer - Angel of Death
Youtube
HX Stomp Direct (Recording, Headphone, PA) You know what this is. I used the Badonk amp model to give the sound the necessary mids and chunk. jorge 234 6
Tele Boogie
Soundcloud
HX Stomp Direct (Recording, Headphone, PA) I really like the Mesa Lone Star amps, but I didn't really care for the stock Helix patches featuring the amp. This tone has 3 snapshots, clean, overdriven and dirty. I used my trusty Telecaster to create the patch and Soundcloud sample below.I'm re… jorge 233 3
Oh Ingrid
Soundcloud
HX Stomp Direct (Recording, Headphone, PA) Derailed Ingrid patch, showing the Trainwreck amp model of the Helix. The Dhyana Drive is included, but not enabled by default. I have been making good use of the "Double Take" modulation effect, it adds a lot of body to the sound through headphones… jorge 146 1
Comments

There are no comments for this yet.
