Browse Helix Models and Effects

Stock delay settings. Sample played with a Charvel Classic 475 using the Deluxe Reverb Helix model at default amp and cab settings.

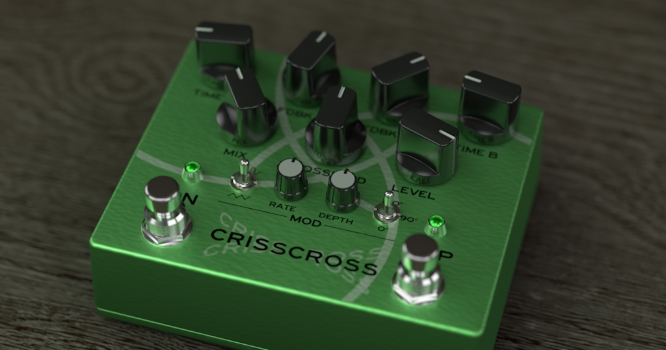

Line 6 Original dual delay with cross-feedback between the two delay lines.

• Time A, Time B—Sets the delay time for each of the two delay lines. Press the knob to toggle between ms/Sec and note values

• Feedbk A, Feedback B—Controls the number of repeats for each delay line. To hear only one repeat, set to 0%

• Pan A, Pan B—To achieve the widest stereo field, set Pan A to L100 and Pan B to R100

• Crossfeed—Controls the amount of the A delay line fed back into the B delay line and vice versa

• Headroom—Some delay pedals' internal signal paths exhibit a bit of grit, especially when placed after a high-gain amp block. Negative values increase the perceived amount of grit; positive values clean things up a bit. At 0dB, the model behaves like the original pedal

• Mix—Controls the wet/dry mix of the delay. When set to 0%, no delay is heard; when set to 100%, no dry signal is heard

• Mod Rate—Controls the rate or speed of modulation. Press the knob to toggle between Hz and note values

• Mod Depth—Controls the depth or amount of modulation

• Low Cut—Applies a low cut (high pass) filter to the repeats, letting you remove the effected signal below a certain frequency

• High Cut—Applies a high cut (low pass) filter to the repeats, letting you remove the effected signal above a certain frequency

• Level—Sets the overall level of the block

• Trails—When set to "Off," delay repeats are instantly muted when the block is bypassed. When set to "On," delay repeats continue to decay naturally when the block is bypassed or a different snapshot is selected

Description source: Line 6
Image source: Line 6
