Browse Helix Models and Effects

Heliosphere (Line 6 Original)

Released With Helix Version 3.15

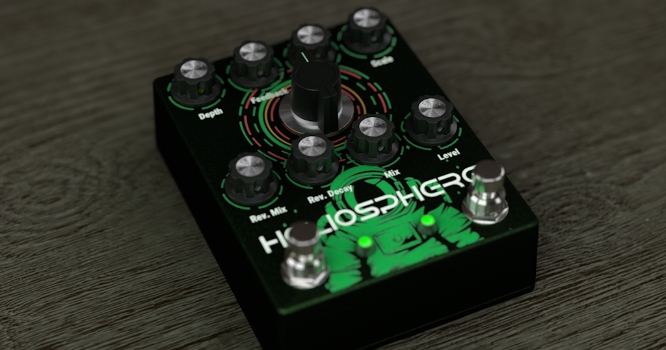

Heliosphere, the Helix model of a Line 6 Original

Stock delay settings. Played with a Charvel Classic 475 using the Deluxe Reverb amp model, default amp and cab settings.

Line 6 Original delay with reverb injected into the feedback loop.


  • Time—Sets the delay time. Press the knob to toggle between ms/Sec and note values
  • Feedback—Controls the overall number of repeats. To hear only one repeat, set to 0%
  • Mix—Controls the wet/dry mix of the delay. When set to 0%, no delay is heard; when set to 100%, no dry signal is heard
  • Rev Mix—Controls the wet/dry mix of the reverb inside the delay's feedback loop. When set to 0%, no reverb is heard
  • Rev Decay—Sets the decay of the reverb
  • Headroom—Some delay pedals' internal signal paths exhibit a bit of grit, especially when placed after a high-gain amp block. Negative values increase the perceived amount of grit; positive values clean things up a bit. At 0dB, the model behaves like the original pedal
  • Level—Sets the overall level of the block
  • Trails—When set to "Off," delay repeats are instantly muted when the block is bypassed. When set to "On," delay repeats continue to decay naturally when the block is bypassed or a different snapshot is selected

Description source: Line 6
Image source: Line 6
